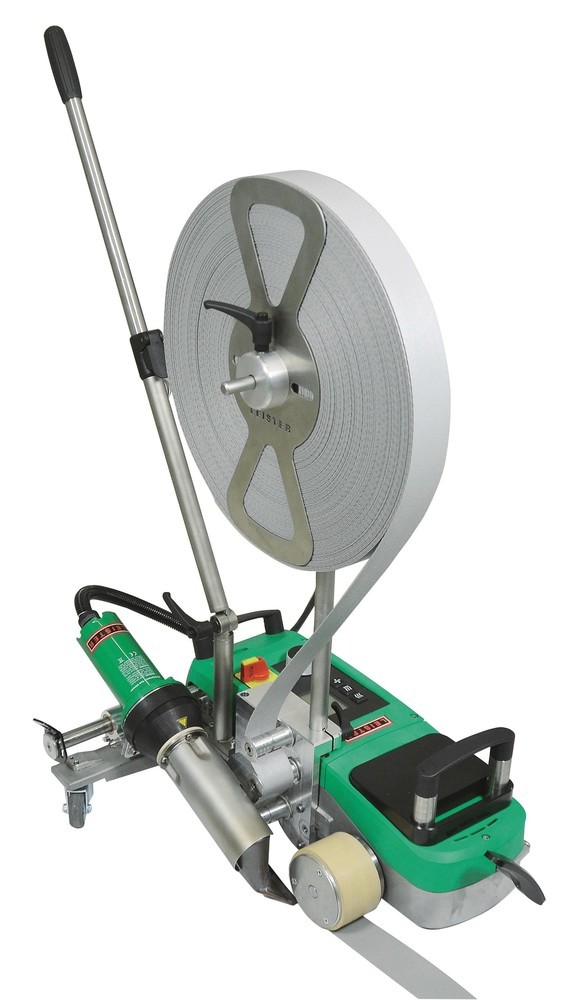

VARIANT T1: Quality, productivity, ergonomic.
The robust VARIANT T1 is very versatile. It is used in various applications for hem, overlap and tape welding. VARIANT T1 convinces with its high working speed, particularly with vehicle tarpaulin production for welding lap, reinforcement and anti-vandalism tapes. Thanks to the “e-Drive” operating concept, setting the relevant welding parameters could not be easier. This tool's top welding speed of up to 18 m/min and its slim, compact design make it a winning choice
• Fastest, most precise automatic tape welding tool (up to 18 m/min)
• "e-Drive" operating unit
• Easy to use
• Taut tape guidance
• Kits for converting VARIANT T1 Overlap to 25 or 50 mm TAPE
Attribute | Unit | Value |
Voltage | V | 230 400 |
Power | W | 3680 5700 |
Frequency | Hz | 50/60 |
Temperature | *C | 100-620 |
Speed | m/min | 1,5-18 |
Air flow range | % | 50-100 |
Weight | kg | 28 (with 11,5 m cable) |
Size (L × W × H) | mm | 700*415*85 |
Conformity mark | CCA, CE | |
Protection class I | I | |
Article No. |
230V 25mm; 50mm; 400V 25mm; 50mm 148.963 148.964 148.965 148.966 |
