ASO

€ 2.064,00

Frequency Hz 50 60
Air volume (20°C) l/min 13500 15900
Pressure static kPa 1.6 2.4
Max. ambient temperature °C 60 60
Max. air inlet temperature °C 200 200
Noise emission level dB(A) 70 70
Environmental protection (IEC 60529) IP 54 IP 54
Outside diameter air inlet mm ∅ 134 ∅ 134
Air outlet (external) mm ∅ 90 ∅ 90
Weight kg 15.0 15.0
Conformity mark 2 2
Protection class I 1 1

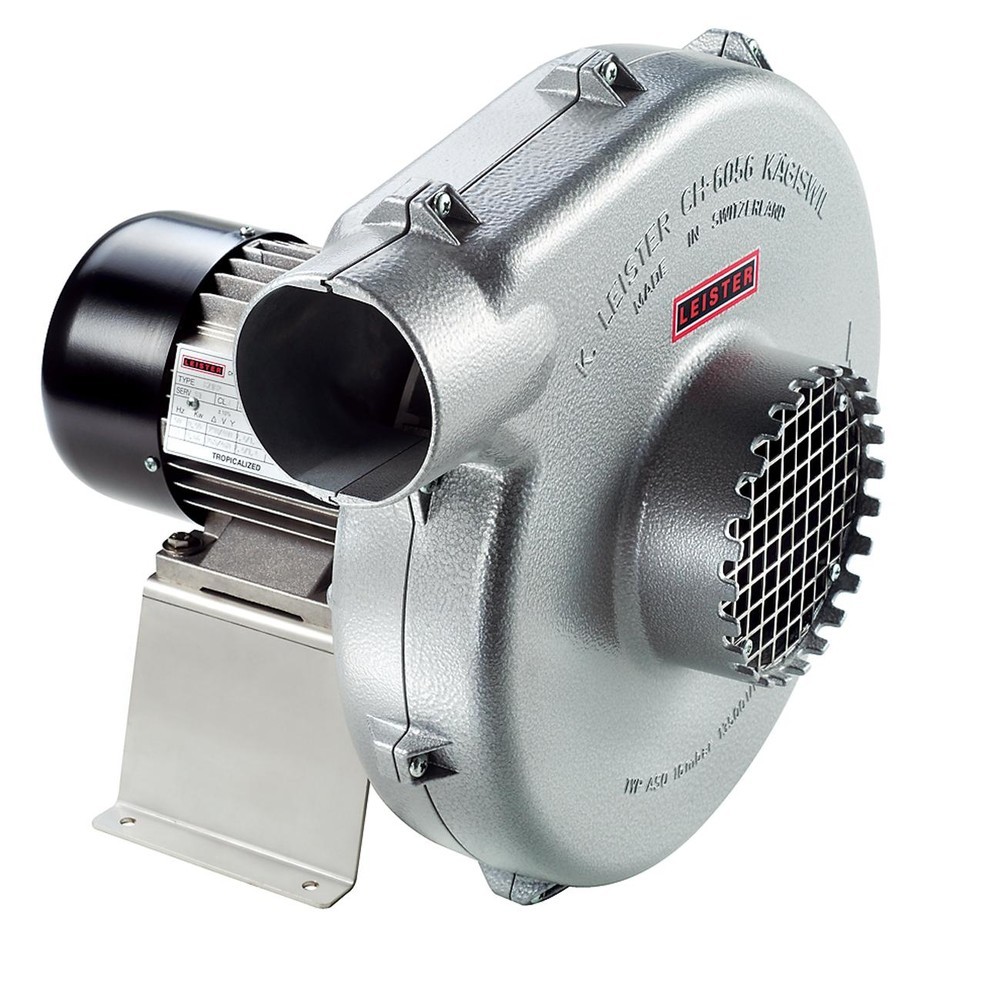

ASO: gigantio blower.


At 60 Hz, the ASO delivers 15 900 l/min. When used with the appropriate accessories it can supply several Leister air heaters in parallel.
