Twinny T

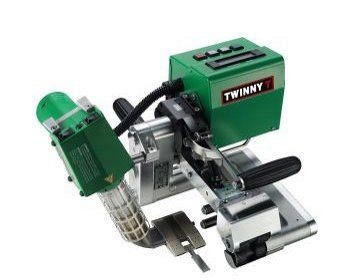

TWINNY T / TWINNY T USB: The little all-rounders.
The TWINNY T is excellent for welding PVC and other thin or soft membranes. It is available either with or without air-test channel. The TWINNY T USB, which makes data storage and display easy with a USB flash memory system, is perfect for critical applications where constant real-time monitoring of primary weld conditions can be stored and displayed.
• Simple operation
• High welding speed
• Digital display of temperature and velocity
• Closed-loop control of temperature and drive
• Perfect welding result even in harsh environmental conditions thanks to hot-air system.
| Attribute | Unit | Value |
| Voltage | V | 230 |
| Power | W | 2300 |
| Frequency | Hz | 50/60 |
| Temperature | *C | 20-560 |
| Speed | m/min | 0,8-3,2 |
| Air volume (20*C) | l/min | level 2: 150, level 3: 190 |
| Welding pressure | N | max. 1000 |
| Static pressure | N | level 2: 1500 (15 mbar), level 3: 2100 (21 mabr) |
| Recording on USB Flash memory | optional (138.089) | |
| Weight | kg | 6,5-6,9 (with 3m cable) |
| Size (L × W × H) | mm | 340*360*245 |
| Conformity mark | CCA | |
| Protection class II | I |
