Fusion 3

€ 4.380,00

Attribute Unit Value
Voltage V 230
Power W 3500
Frequency Hz 50/60
Air volume (20*C) l/min 300
Material   PE/PP
Welding rod mm Ø3 i Ø4
Output HDPE Ø4 kg/h 1,6-3,5
Output Ø3 kg/h PE 1.6–2.3     PP 1.3–2.0
Output Ø4 kg7h PE 2.0–3.5     PP 1.5–2.7
Max. air outlet temperature *C do 350
Max. Plastification temperature *C do 350
Weight kg 7,2 (without cable)
Size (L × W × H) mm 670*90*180
Conformity mark   CCA
Protection class II   II
Article No.   118.300

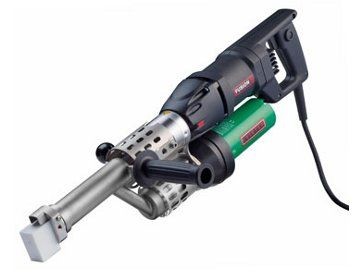

FUSION 3:Long and slim.

With its long and narrow shape, the FUSION 3 enables comfortable work, even on the floor.

• High-quality welding performance
• Compact and handy
• Motor start-up protection prevents cold start
• Simple operation
• Dual-sided twist-free wire intake
• 360° rotating welding shoe
