Groover

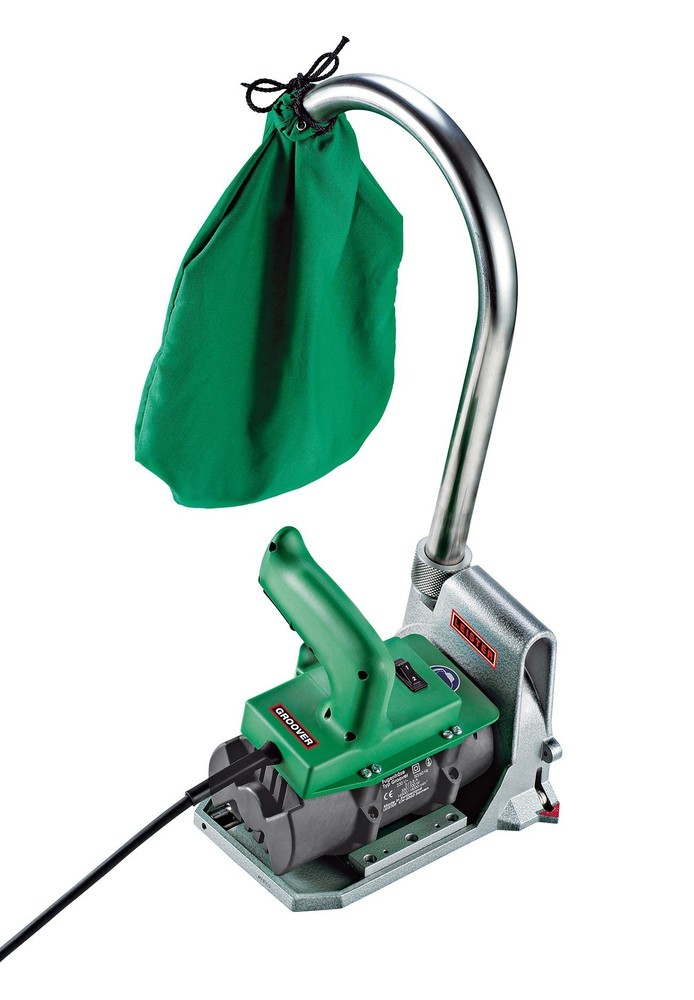

GROOVER: Dust-free milling.
The GROOVER grooving machine cuts welding grooves into thick, tough floor coverings made of PVC-P, PE and linoleum. The tool glides on three rollers and cuts a uniform groove depth, even at high speeds.
• Cuts grooves into of all types of floor coverings
• Extremely high, two stage cutting speeeds
• Adjustable guide roller for tracking accuracy
• Reduced dust particles when used with dust bag
• Cutting close to the edge possible
|
Technical Data |
||||||
| Attribute: | Unit: | Value: | ||||
| Voltage | V | 230 | ||||
| Power | W | 2 levels: 350 | 700 | |||
| Frequency | Hz | 50/60 | ||||
| Speed | m/min | 14500 (350W) | 18500(700W) | |||
| Groove depth adjustment | mm | 0-4 | ||||
| Weight | kg | 6,7 (with 3m cable) | ||||
| Size (L × W × H) | mm | 240 x 205 x 255 | ||||
| Conformity mark | CCA | |||||
| Protection class II | II | |||||
|
trapezoidal profile |
Circurlar profile | |||||
| Article No. | 108.393 | 111.032 |
